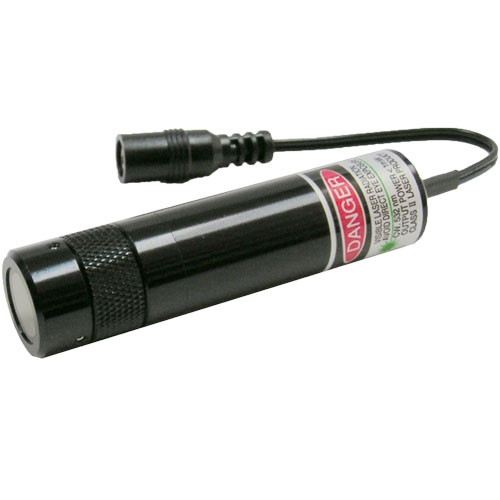

KML-G3XXC SERIES
Green Cross - Mark LASER PROJECTOR
Feature：
●Japan's industrial-grade laser diode
●Industrial design, high stability
●Patented precision focal length adjustable
structure
●AVR+APC Control Circuit
●Long life
SPECIFICATIONS：
Model：KML-G301C
Wavelength：510 ~ 530 nm GREEN
Output Power：< 1 mW
Project Distance：1 m
Line Length：12.5 cm
Line Thickness：0.5 mm Focus Adjustable
Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅱ
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D 20 X L 82 (mm)
Weight：55 ± 5 g
Model：KML-G302C
Wavelength：510 ~ 530 nm GREEN
Output Power：< 2 mW
Project Distance：2 m
Line Length：25 cm
Line Thickness：1.0 mm Focus Adjustable
Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲa
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D 20 X L 82 (mm)
Weight：55 ± 5 g
Model：KML-G303C
Wavelength：510 ~ 530 nm GREEN
Output Power：< 3 mW
Project Distance：3 m
Line Length：37.5 cm
Line Thickness：2.0 mm Focus Adjustable
Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲa
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D 20 X L 82 (mm)
Weight：55 ± 5 g
Model：KML-G3XXC-24V
Wavelength：510 ~ 530 nm GREEN
Output Power：1 / 2 / 3 mW
Project Distance：1 / 2 / 3 m
Line Length：12.5 / 25 / 37.5 cm
Line Thickness：0.5 / 1.0 / 2.0 mm
Focus Adjustable
Input Voltage： 24 VDC ± 10%
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅱ、Ⅲa
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D 20 X L 82 (mm)
Weight：55 ± 5 g
Model：KML-G305C
Wavelength：510 ~ 530 nm GREEN
Output Power：< 5 mW
Project Distance：5 m
Line Length：62.5 cm
Line Thickness：3 mm Focus Adjustable
Input Voltage：5 ~ 8 VDC
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲa
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D 20 X L 82 (mm)
Weight：55 ± 5 g
Model：KML-G308C
Wavelength：510 ~ 530 nm GREEN
Output Power：< 8 mW
Project Distance：8 m
Line Length：100 cm
Line Thickness：5 mm Focus Adjustable
Input Voltage：5 ~ 8 VDC
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲb
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D 20 X L 82 (mm)
Weight：55 ± 5 g
Model：KML-G3XXC-24V
Wavelength：510 ~ 530 nm GREEN
Output Power：5 / 8 mW
Project Distance：5 / 8 m
Line Length：62.5 / 100 cm
Line Thickness：3 / 5 mm
Focus Adjustable
Input Voltage： 24 VDC ± 10%
Operating Current：< 220 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅲa、Ⅲb
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D 20 X L 82 (mm)
Weight：55 ± 5 g
Applications：
● Garment processing
● Metal working
● Paper processing
● Sewing processing
● Bicycle processing
● Print processing
● Golf processing
Remarks：
1.The line length and line width of the
projection will vary depending on the
projection distance, angle, material,
color or illumination.
2.Special specifications can be requested.
Example：
 |
