KML-2XXXRFA SERIES

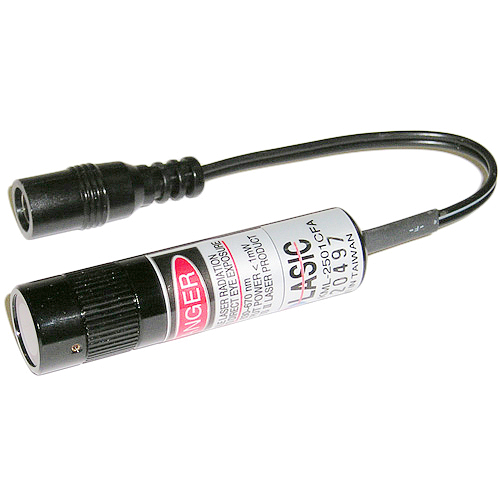

Circle - Mark LASER PROJECTOR

Feature：
●Japan's industrial-grade laser diode
●Industrial design, high stability
●Patented precision focal length adjustable
  structure
●AVR+APC Control Circuit
●Long life

SPECIFICATIONS：
Model：KML-2501RFA
Wavelength：630 ~ 650 nm RED
Output Power：< 1 mW
Project Distance：1 m
Line Length：4 cm
Line Width：1 mm Focus Adjustable

Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅱ
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D 15 X L 60 (mm)
Weight：24 ± 2 g)

Model：KML-2502RFA
Wavelength：630 ~ 650 nm RED
Output Power：< 2 mW
Project Distance：2 m
Line Length：8 cm Focus Adjustable

Line Width：2 mm
Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅱ
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D 15 X L 60 (mm)
Weight：24 ± 2 g)

Model：KML-2503RFA
Wavelength：630 ~ 650 nm RED
Output Power：< 3 mW
Project Distance：3 m
Line Length：12 cm
Line Width：3 mm Focus Adjustable

Input Voltage：5 ~ 8 VDC
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅱ
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D 15 X L 60 (mm)
Weight：24 ± 2 g)

Model：KML-2XXXRFA-24V
Wavelength：630 ~ 650 nm RED
Output Power：1 / 2 / 3 mW
Project Distance：1 / 2 / 3 m
Line Length：4 / 8 / 12 cm
Line Width：1 / 2 / 3 mm
　　　　　　Focus Adjustable

Input Voltage：24 VDC ± 10%
Operating Current：< 70 mA
Operating Temp.：– 10 ~ +50 °C
Safety Class：Class Ⅱ
IP Class：IP 64
Lifetimes：> 20,000 hr
Dimensions：D15 X L80 (mm)
Weight：34 ± 2 g

Applications：
● Steel drilling Positioning
● Fixing timber processing
● Buttons riveting process
● PCB processing
● Axis calibration
● Reference point for processing

Remarks：
1.The line length and line width of the projection
　will vary depending on the projection distance,
　angle, material, color or illumination.
2.Special specifications can be requested.

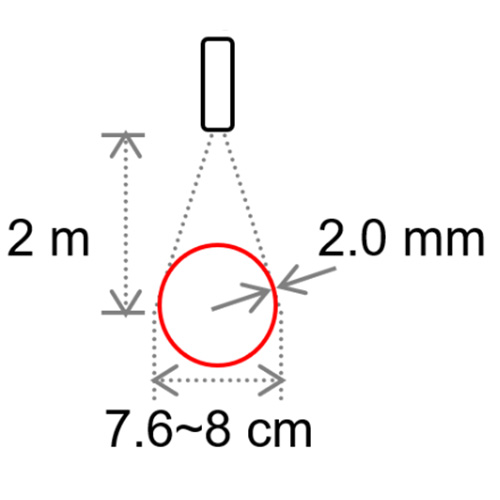

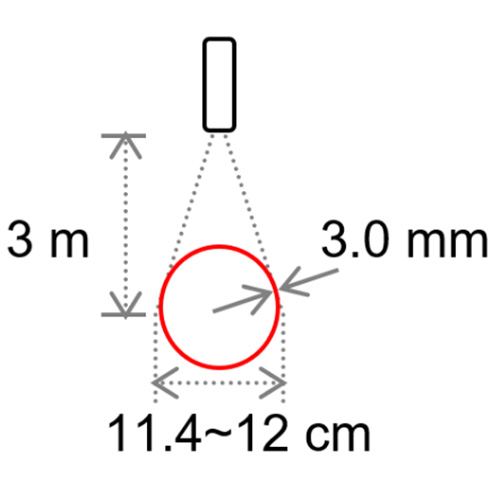

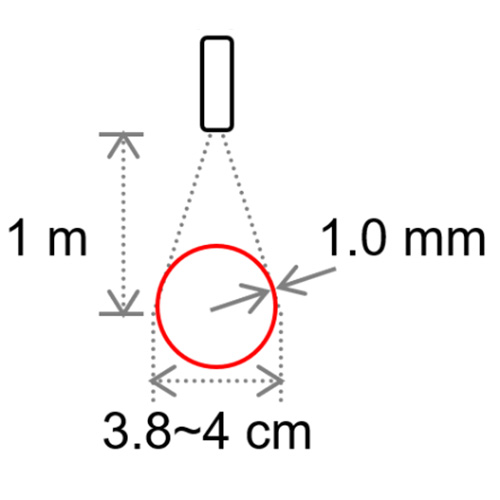

Example：
